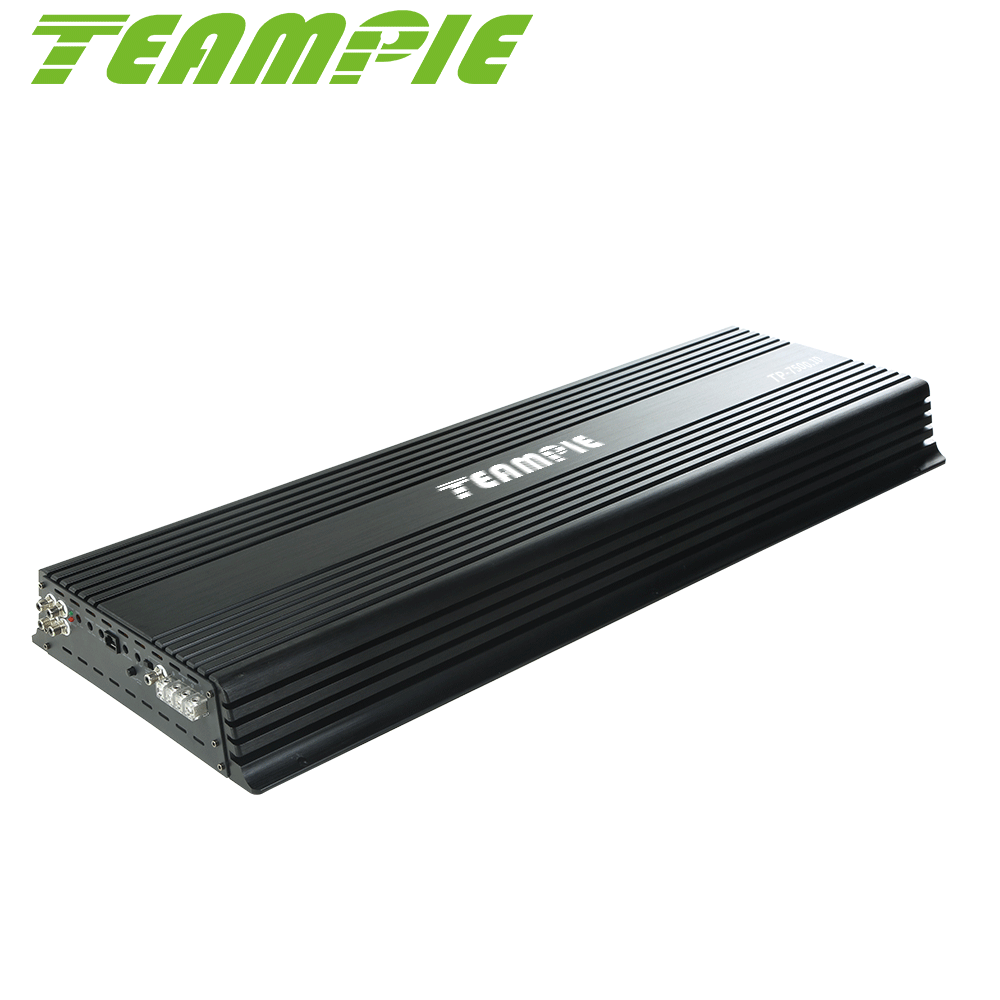

7500W CAR AUDIO AMPLIFIER

PRODUCT NAMEHIGH POWER CLASS D CAR AUDIO AMPLIFIER

MODEL NO.TP-7500.1D

TYPE (FREQUENCY)LOW RANGE

CHANNEL1

OPERATING VOLTAGE DC 9-15V

OUTPUT POWER 7500W * 1CH (@14.4V/1 OHM)

OUTPUT POWER 4800W * 1CH (@14.4V/2 OHM)

OUTPUT POWER 2600W * 1CH (@14.4V/4 OHM)

INPUT SENSITIVITY0.2-6V

SNR≥ 95 dB

FREQUENCY RESPONSE15 - 270 Hz

LOW PASS FILTER35-250Hz

SUBSONIC FILTER10-50Hz

HIGH PASS FILTER-

PHASE REGULATION0 - 180°

MIN. LOAD ON SINGLE CHANNEL1 OHM

MIN. LOAD IN BRIDGE MODE-

MIN. LOAD IN LINK MODE2 OHM (MASTER/SLAVE LINK)

SIZE (L*W*H)850*303*77MM

WEIGHT18.5KGS
